Every insulation project depends on consistent performance data—and that starts with clear material standards. The ASTM C578 specification defines how rigid polystyrene insulation is manufactured, tested, and classified by strength and density. Understanding these classifications allows designers and specifiers to select materials that meet both structural and thermal demands across roofs, walls, and foundations.
What ASTM C578 Covers
The standard is the Specification for Rigid, Cellular Polystyrene Thermal Insulation. It defines property requirements for molded or extruded foam boards used in building envelopes and civil applications. The document applies to insulation operating between −65 °F and 165 °F and excludes laminated or faced products that change base performance.
Originally issued in 1951 and revised many times since, it sets measurable thresholds for compressive strength, density, thermal resistance, dimensional stability, water absorption, vapor permeance, and flexural strength.
Manufacturers run controlled tests to prove compliance before a board can carry a specific “Type” label.
This framework promotes uniform minimum performance from one producer to the next, giving architects and contractors confidence that a specified type will meet identical minimum criteria regardless of brand.
Classification of Types
Each type in ASTM C578 corresponds to a minimum compressive strength and nominal density, establishing predictable performance benchmarks for design and field use.Higher-density types generally resist crushing and moisture intrusion better, though actual moisture behavior also depends on manufacturing process and facers and may slightly reduce R-value per inch because of reduced trapped air. Designers typically balance compressive strength against budget and application—light framing rarely needs more than Type II, while plaza decks or freezer floors may justify Type VII or IX.
Key Physical Property Requirements
Each foam type defined in the specification must meet specific property thresholds verified through testing.
Compressive strength: Measured at 10 % deformation to verify load capacity for roofs or foundations.
Thermal resistance: Typically R-3.6 to R-4.5 per inch, confirmed by ASTM C518 testing.
Water absorption: Many boards limit absorption to low single-digit percentages by ASTM C272; some XPS products report values as low as 0.1%.
Vapor permeance: Determined separately by ASTM E96.
Dimensional stability: Most manufacturers design boards to maintain less than ~2 % change through thermal cycling, a common benchmark reflected in data sheets.
Flame and smoke index: Evaluated through ASTM E84 testing when required by building code or project specification; not a base requirement of the standard.
These benchmarks confirm that materials maintain mechanical and thermal integrity under load, moisture, and temperature variation. They do not guarantee system performance—installation and protection layers still determine long-term success.
Spotlight on ASTM C578 Type IV
Among all categories, ASTM C578 Type IV remains the workhorse grade. With a 25-psi compressive-strength minimum and moderate density, it balances rigidity, weight, and cost.
Type IV performs well in roof assemblies where insulation supports membrane loads without deformation and in below-grade walls subject to compressive and moisture stress.
It also appears in protected-membrane roof systems and insulated concrete forms, where compressive resistance helps limit deformation under long-term load.
Most designers call it the go-to spec unless a project pushes higher loads or unusual moisture exposure.
Its balance of strength and cost makes it the baseline EPS and XPS type for commercial and residential applications alike.
EPS vs XPS Under the Standard
Both expanded polystyrene (EPS) and extruded polystyrene (XPS) comply with ASTM C578 but are produced differently. EPS is molded from pre-expanded beads fused in a block, producing uniform density with open cell interfaces. XPS is extruded in a continuous process, creating a tighter cell structure with lower water absorption.
Thermal Performance
XPS typically achieves around R-5 per inch, while EPS commonly ranges about R-3.6 to R-4.2, with values varying by product formulation and temperature. XPS can experience minor long-term thermal drift as blowing gases diffuse, while EPS values tend to remain more stable over time.
Moisture Behavior
XPS typically shows lower water absorption in short-term standardized tests, while field studies have found EPS can retain less long-term moisture in certain soil or freeze-thaw exposures.
Environmental Impact
EPS uses low-GWP pentane blowing agents; new XPS formulations are transitioning to similar chemistry.
Because the specification classifies by performance rather than manufacturing method, both materials share the same type thresholds but exhibit slightly different field behavior. Designers evaluate these trade-offs in context of cost, exposure, and project requirements.
Specifying and Selecting Materials per C578
When writing or reviewing specifications, confirm these elements:
Type designation: Identify both material and type (e.g., “EPS Type IV insulation complying with ASTM C578”).
Compressive and thermal values: Use tested data, not nominal marketing values.
Moisture exposure: Select higher-density types for below-grade or inverted roof use.
Compatibility: Verify adhesive and membrane chemistry with polystyrene.
Fire protection: Install within rated assemblies or protect with code-approved barriers.
The standard sets the baseline; actual performance depends on installation and environmental conditions. Proper drainage and protection boards extend service life and preserve R-value over time.
Common Pitfalls and Specification Errors
Misinterpreting the requirements of the specification often leads to recurring design and installation errors that are easily avoided with careful review.
Assuming all EPS or XPS perform equally without testing.
Treating “Type” as a quality grade instead of a minimum standard.
Ignoring long-term creep under sustained loads.
Mixing solvent-based adhesives incompatible with polystyrene.
Using foam boards intended for thermal insulation as structural components.
Recognizing these limits keeps insulation systems reliable through their design life and avoids costly callbacks.
Where R-Max Fits into the Discussion
While both standards test compressive and thermal properties, polyiso often achieves among the highest R-values per inch under standard test conditions—typically around R-6 to R-6.5, though performance varies with temperature and long-term aging (LTTR).
It generally demonstrates better fire behavior than many EPS or XPS foams because it is a thermoset material that does not melt or drip under heat exposure.
Polyiso boards are also engineered to maintain dimensional stability across a broad service-temperature range when installed in accordance with manufacturer guidance.
Designers commonly specify C578-compliant foams for below-grade and cold-storage applications, while choosing C1289-certified polyiso for continuous insulation in above-grade walls and roofs.
Understanding these differences ensures balanced assemblies that meet both energy-efficiency and fire-safety objectives.

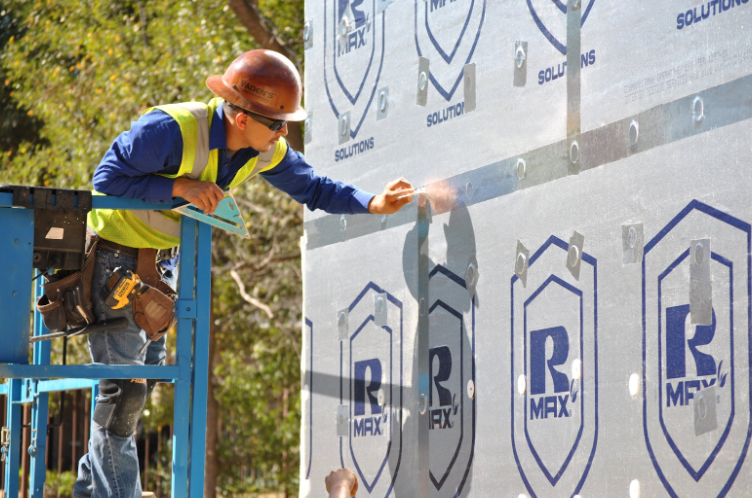

Smarter Insulation Choices Start with R-Max
R-Max engineers manufacture polyiso insulation systems tested to ASTM C1289, offering among the highest R-values per inch typical of rigid foam boards. These products help create energy-efficient building envelopes and provide reliable fire and moisture performance when installed within properly designed assemblies. Contact us today for more information.
