Rmax Multi-Max® FA-3
Above the Deck Insulation

The glass fiber/organic mat facers make this product compatible with virtually any roofing system. Specify Multi-Max® FA-3 for use with single ply, built-up and modified bitumen membranes or metal panel roofing applications.


Rmax Multi-Max FA-3 Compliances

CONSTRUCTION APPLICATIONS

  • Built-up roof
  • Modified bitumen
  • Fully adhered single ply
  • Mechanically attached single ply
  • Loose laid ballasted single ply
  • Metal panel roofing
                                      Metal Panel Application

                                      Metal Panel Application


THERMAL PROPERTIES

1The 1.50 inches and thicker products are approved for FM Class 1-90 wind uplift.  2LTTR values are determined in accordance with CAN/ULC-S770. LTTR predicts a 15-year, time-weighted average.  3Multi-Max FA-3 is shipped in bundles that are approximately 48 inches high and wrapped in plastic for easy handling.  NOTE: Metal deck flute span shall be a maximum of 4 3/8".

1The 1.50 inches and thicker products are approved for FM Class 1-90 wind uplift.
2LTTR values are determined in accordance with CAN/ULC-S770. LTTR predicts a 15-year, time-weighted average.
3Multi-Max FA-3 is shipped in bundles that are approximately 48 inches high and wrapped in plastic for easy handling.
NOTE: Metal deck flute span shall be a maximum of 4 3/8".

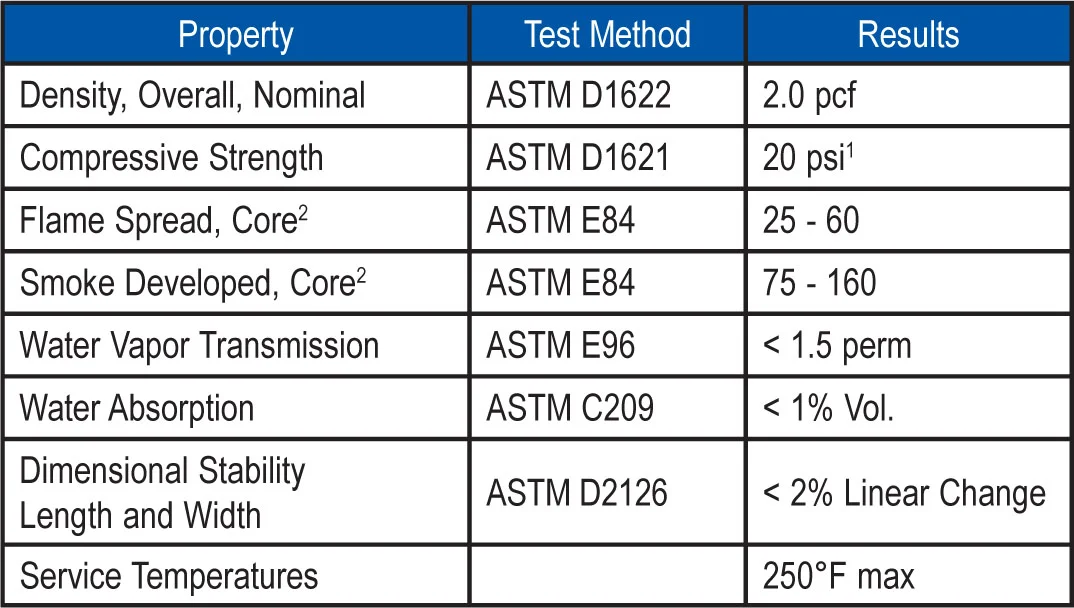

TYPICAL PHYSICAL PROPERTIES

1Also available in Grade 2 or Grade 3 upon request. 2Flame Spread and Smoke Developed Indexes are used to measure and describe the properties of this material in response to heat and flame under controlled laboratory conditions and should not be used to describe or appraise the fire hazard or fire risk of this material and other related roofing components under actual fire conditions.

1Also available in Grade 2 or Grade 3 upon request.
2Flame Spread and Smoke Developed Indexes are used to measure and describe the properties of this material in response to heat and flame under controlled laboratory conditions and should not be used to describe or appraise the fire hazard or fire risk of this material and other related roofing components under actual fire conditions.
